TT-R230

yamaha-tt-r230

Yamaha TT-R230 for Sale at Moorooka Yamaha in Moorooka, QLD | Specifications and Review Information

Meet Mr - and Mrs - Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC 4-stroke make the TT-R230 a great choice for beginner and intermediate riders.

A competition-style flat seat/tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.

SUPERB STOPPING POWER

SUPERB STOPPING POWER

Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

PLUSH SUSPENSION

PLUSH SUSPENSION

36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.

6-SPEED GEARBOX

6-SPEED GEARBOX

Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.

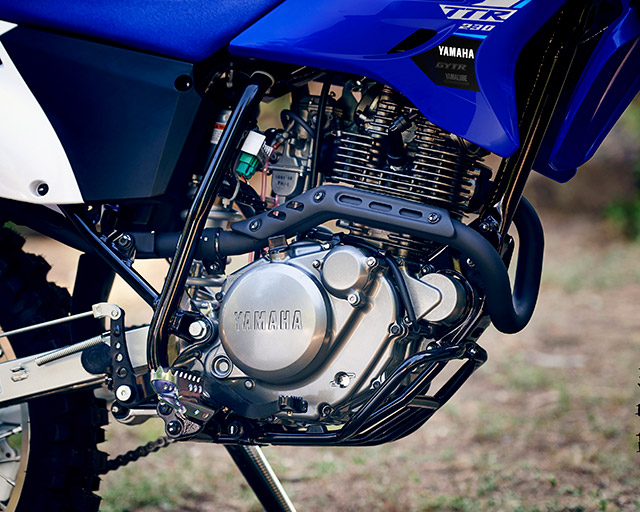

AIR-COOLED 223CC FOUR-STROKE

AIR-COOLED 223CC FOUR-STROKE

Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.

LOW SEAT HEIGHT

LOW SEAT HEIGHT

A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.

Technical Specifications



Engine



Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc) 223.0
Bore x Stroke (mm) 70.0 x 58.0
Compression Ratio 9.5 : 1
Lubrication System Wet sump
Fuel Management Y26P x 1
Ignition CDI
Starter System Electric
Fuel Tank Capacity (L) 8.0
Final Transmission Chain
Transmission Constant mesh 6-speed



Chassis



Frame Type Diamond
Suspension Front Telescopic forks, 240mm travel
Suspension Rear Swingarm (link suspension), 220mm travel
Brakes Front Hydraulic single disc, 220mm
Brakes Rear Drum
Tyres Front 80/100-21 51R Tube type
Tyres Rear 100/100-18 59R Tube type



Dimensions



Length (mm) 2065
Width (mm) 800
Height (mm) 1180
Seat Height (mm) 870
Wheelbase (mm) 1385
Ground Clearance (mm) 295
Wet Weight (kg) 114
